Stacked Large Capacity Shaking Incubator

Explore BABIO 200L stacked shaking incubators for bacterial culture, fermentation and cell research, with precise PID control, UV disinfection and factory-direct supply.

Send Inquiry

Product Description

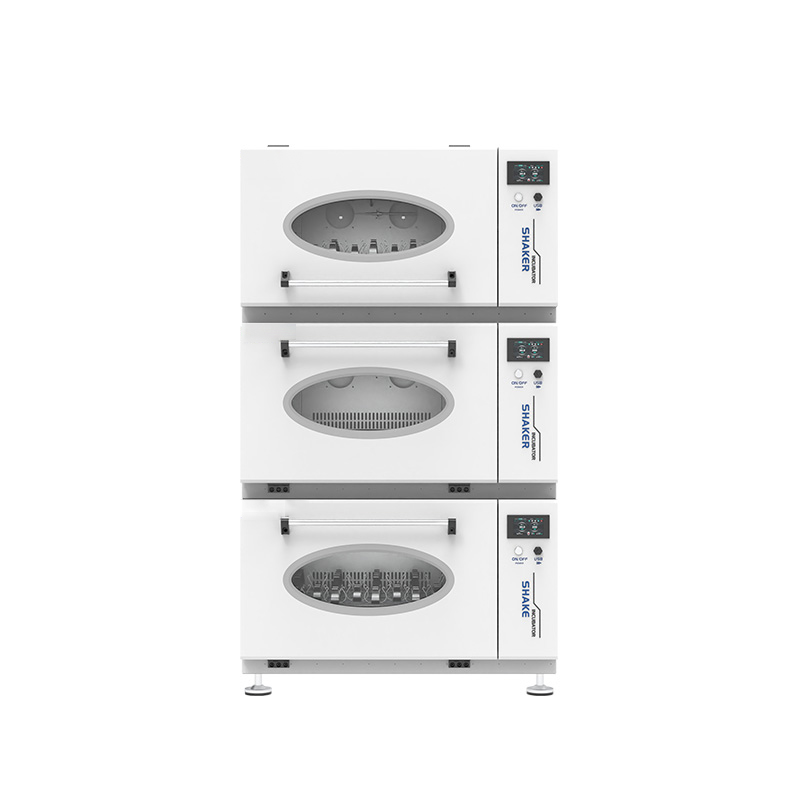

Stacked Large Capacity Shaking Incubator

The Stacked Large Capacity Shaking Incubator BJPX-SDW10, SDW20, SDW10-L, and SDW20-L supports efficient bacterial culture, fermentation, cell culture, and laboratory research. Its 200L capacity, brushless DC motor, and precise PID temperature control provide stable incubation and rotary shaking up to 300 rpm. This laboratory shaking incubator features UV disinfection, LED lighting, power failure recovery, and USB data storage for convenient operation and traceability. Refrigerated models offer temperatures as low as 4°C. As a well-known Chinese laboratory equipment manufacturer, BABIO provides factory-direct supply for research laboratories and distributors. Explore specifications at https://www.babiocorp.com.

Features:

1. Multiple methods to monitor equipment temperature, complete recording of information and traceability of quality control data.

2. High quality brushless DC motor, low vibration, low noise, high efficiency, maintenance free, energy saving, lasting operation.

3. 5 inch touch screen /LCD screen, clear and intuitive interface, easy to operate.

4. With UV disinfection function, the cavity to maintain a clean and sterile environment.

5. LED lighting function, open the door and turn on the light automatically.

6. With power failure recovery function, the equipment can automatically resume operation according to the original program.

7. Electric heating toughened glass perspective window, easy to observe, good temperature insulation effect, anti condensation.

Stacked Large Capacity Shaking Incubator

Technical Parameters:

Model	BJPX-SDW10	BJPX-SDW20	BJPX-SDW10-L	BJPX-SDW20-L
Capacity	200L
Temp.Sensor	PT100
Temp. Range	RT+5~65℃	4~65℃	RT+5~65℃	4~65℃
Temp. Fluctuation	≤±0.1℃
Temp. Uniformity	≤±0.45℃(37℃)
Temp. Precision	0.1℃
Timing Range	0~999h		0~9999min
Controller	PID
Display	5 inch touch screen		3-inch LCD screen
Circulation Mode	Forced convection
Shaking Mode	Rotary shaking
Drive Mode	Single axis balanced drive type
Vibration Range	Φ26mm
Rotating Speed	0, 20~300r/min
Rotating Accuracy	±1r/min
Shaking Plate Size	720*490mm
Shaking Plate Quantity	1pc
Max. Capacity	250ml34 or 500ml24 or 1000ml15 or 2000ml8 or 3000ml6(Flask clamp) Tube rack4 96-well plate21 Clamping rod shaking plate2(For 3000ml, 1. Install a wide-mouth flask, height ≤310mm; 2. When the universal spring clamp is selected, it can not be placed)
Standard. Capacity	500ml*24
Lighting Mode	LED lamp*1
Sterilization Mode	UV lamp*2
Refrigerant	/	R290, 80g	/	R290, 80g
Ambient Temp.	15~35℃
Internal Material	304 stainless steel
External Material	Cold rolled steel sheet
Data Storage	USB data storage and output function
	Standard		Optional
Printer	built-in micro printer(Optional) (Need to be matched with USB data storage and output function)
Safety Function	Upper and lower limit over-temperature audible and visual alarm Upper and lower limit over-speed alarm Sensor fault identification Independent over-temperature protector Independent leakage or over-current protection Refrigerator over-load protection
Consumption	1500W	2200W	1500W	2200W
Power Supply	AC220V, 50/60Hz(Standard); 110V, 50/60Hz(Optional, external transformer)
Internal Size(WDH)	870590398mm(Per unit)
External Size(WDH)	1150780640mm(Per unit)
Package Size(WDH)	1345970910mm(Per unit)
Net Weight	305kg(Per unit)	325kg(Per unit)	305kg(Per unit)	325kg(Per unit)
Gross Weight	335kg(Per unit)	355kg(Per unit)	335kg(Per unit)	355kg(Per unit)
