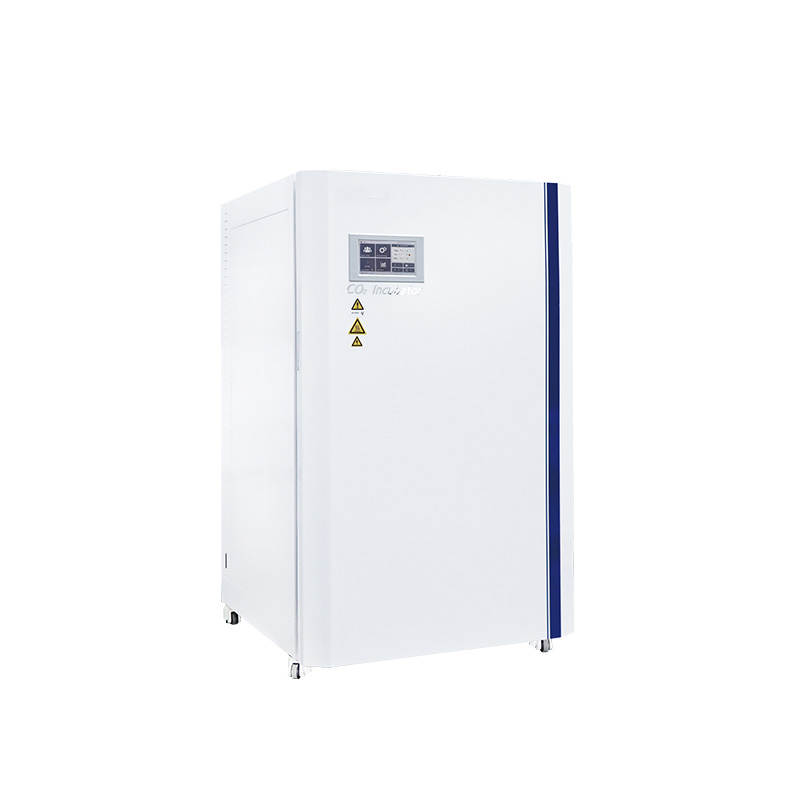

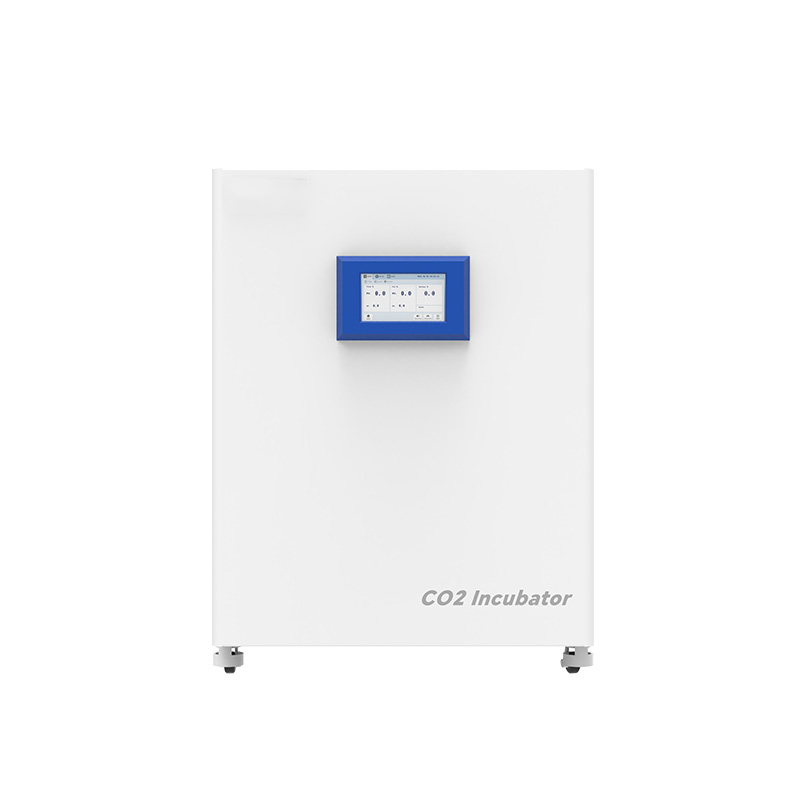

CO2 incubator for cell culture with IR sensor, HEPA filtration, 180°C sterilization and precise temperature control. 50L–300L models from Babio.
The CO2 incubator is a professional cell culture incubator designed for stable, contamination-controlled laboratory environments. This CO2 incubator supports cell culture, tissue culture, stem cell research, microbiology, and biomedical research with 50L–300L capacity options. The CO2 incubator features a dual-channel IR infrared CO2 sensor, 304 stainless-steel chamber, six-side heating, 180°C dry-heat sterilization, and HEPA filtration with 99.97% efficiency. HermeSEAL® technology improves sensor stability under high humidity and temperature. The CO2 incubator provides precise temperature and CO2 control through a 7-inch touchscreen, making it an ideal laboratory incubator for modern life science applications. As a leading Chinese manufacturer, Babio Biotechnology supplies reliable laboratory equipment with factory-direct service and customization options. Explore Babio at https://www.babiocorp.com.
Features:
1. IR infrared sensor, using dual-channel dual-filter infrared technology.
2. The inner tank is designed with full-radius corners and the surface is made of 304 mirror finish stainless steel.
3. Adopt double heating module, six side heating.
4. The cavity is uniformly heated by silicone rubber heating wire heater with aluminum foil-wrapped, offering rapid temperature rise and good uniformity.
5. Equipped with leakage current and over-voltage protectors. Features over-temperature, under-temperature, over-concentration and under-concentration alarms.
6. HEPA high-efficiency filter, with a filtration efficiency of 99.97%.
7. HermeSEAL® technology, with its patented encapsulated infrared assembly, resists high temperature, high humidity, and corrosive environments, ensuring long-term stability even in harsh conditions.
8. The sensor prevents condensation upon power-on, avoiding failures caused by moisture and ensuring more stable and reliable measurements.
Technical Parameters:
|
Model |
BJPX-C50D |
BJPX-C80D |
BJPX-C160D |
BJPX-C180D |
BJPX-C220D |
BJPX-C300D |
|
Type |
Dry heat series, air jacket |
|||||
|
Sterilization Type |
180℃ dry heat sterilization |
|||||
|
Capacity |
50L |
80L |
160L |
180L |
220L |
300L |
|
Temp. Sensor |
PT100 |
|||||
|
Temp. Range |
RT+5~60℃ |
|||||
|
Temp. Fluctuation |
±0.5℃ (@37℃: ±0.3℃) |
|||||
|
Temp. Uniformity |
±1.0℃ (@37℃: ±0.5℃) |
|||||
|
Temp. Precision |
0.1℃ |
|||||
|
Timing Range |
0~999h or continuos |
|||||
|
Display |
7-inch touch screen |
|||||
|
CO2 Control |
IR infrared sensor with calibration certificate |
|||||
|
CO2 Range |
0~20vol% |
|||||
|
CO2 Uniformity |
0.2vol% |
|||||
|
CO2 Control Resolution |
0.1vol% |
|||||
|
Ambient Temperature and Humidity |
Ambient temperature: 18~30℃ (Recommendation: 25±2℃) Ambient humidity: ≤80% |
|||||
|
Filter |
CO2 gas filter |
|||||
|
Power Supply |
AC 220V, 50/60Hz (Standard); 110V, 50/60Hz (Optional) (External transformer) Wiring method: plug |
|||||
|
Consumption |
1400W |
1700W |
2400W |
|||
|
Shelves |
2pcs, adjustable |
|||||
|
Standard Accessories |
Shelves, USB interface, CO2 relief valve, water tank, CO2 gas filter |
|||||
|
Optional Accessory |
Three-way connector |
|||||
|
Internal Size(W*D*H) |
332*326*496mm |
401*352*576mm |
551*462*646mm |
451*506*716mm |
502*545*786mm |
534*565*996mm |
|
External Size(W*D*H) |
660*552*764mm |
688*622*850mm |
870*710*958mm |
770*722*992mm |
820*762*1060mm |
860*802*1260mm |
|
Package Size(W*D*H) |
730*642*784mm |
758*712*870mm |
940*800*978mm |
840*812*1012mm |
890*852*1260mm |
930*892*1460mm |
|
Net Weight |
80kg |
90kg |
115kg |
125kg |
137kg |
169.5kg |
|
Gross Weight |
95kg |
105kg |
130kg |
140kg |
152kg |
184.5kg |
