Product Description

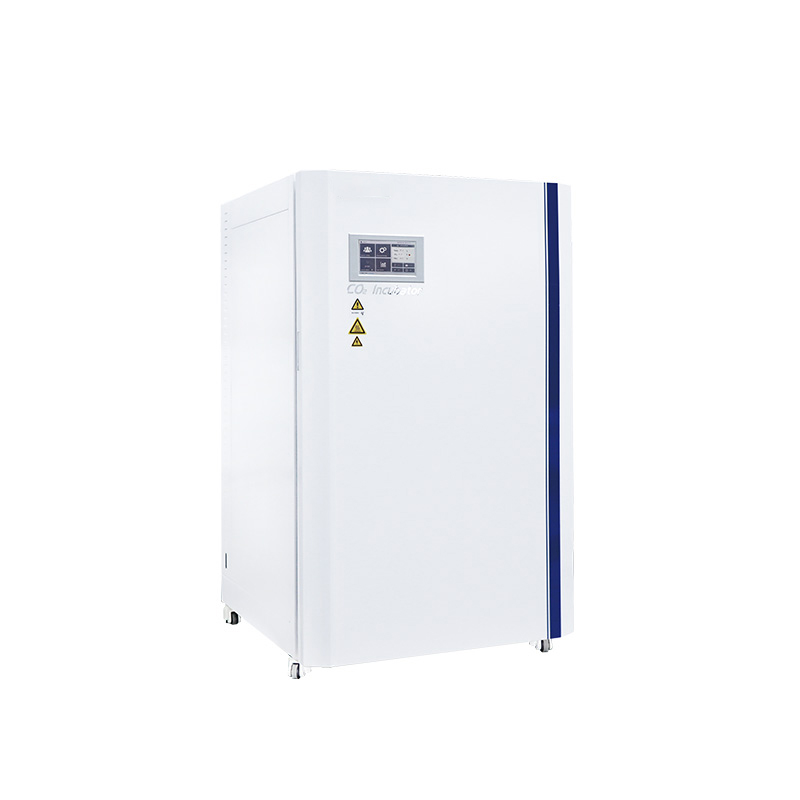

The CO2 incubator BJPX-C100M, C160M, C200M and C300M provides a stable environment for mammalian cell culture, tissue culture, cytology, oncology, genetics, immunology, virus research and biotechnology. With 100L–300L capacities, this cell culture incubator maintains precise temperature and CO2 conditions through an IR infrared sensor, 3D airflow channel and uniform heating system. Built-in HEPA filtration supports cleaner chamber conditions, while the 304 stainless steel interior, 90°C moist heat sterilization and bottom water reservoir simplify laboratory maintenance. Multiple safety alarms protect valuable cultures during long-term incubation. As a well-known Chinese manufacturer of laboratory equipment, BABIO (Baibo Biotechnology) supplies professional CO2 cell incubators for research laboratories, biotechnology and industrial applications. For specifications and factory-direct solutions, visit https://www.babiocorp.com.

Application:

It is suitable for a wide range of fields such as cytology, biology, oncology, genetics, immunology, virus research and genetic engineering research. It is an ideal device for the cultivation of cells, tissues and bacteria in scientific research units and industrial production departments such as biochemistry and agricultural science.

Features:

1. IR infrared sensor, using dual-channel dual-filter infrared technology.

2. The design of multiple small doors reduces the amount of air exchange between the outside space and the inside of the incubator during the opening process.

3. Inner tank is made of 304 mirror finish stainless steel, featuring a semi-circular corner design for faster and more effective bottom cleaning and sterilization.

4. The design of the 3D airflow channel ensures uniform CO2 distribution, enhancing the accuracy of IR sensor data collection.

5. The interior is heated uniformly by aluminum foil-wrapped silicone heating wires, ensuring rapid temperature increase and excellent uniformity.

6. High quality HEPA filter ensures the inside gas quality.

7. SMC brand solenoid valves ensure more stable gas concentration and less consumption of gas.

8. Equipped with leakage current and over-voltage protectors. Features over-temperature, under-temperature, over-concentration and under-concentration alarms.

9. The water reservoir in the bottom chamber ensures high humidity.

Technical Parameters:

Model	BJPX-C100M	BJPX-C160M	BJPX-C200M	BJPX-C300M
Type	Medical series, air jacket
Sterilization Type	90℃ moist heat sterilization
Capacity	100L	160L	200L	300L
Temp. Sensor	PT100
Temp. Range	RT＋5~60℃
Temp. Fluctuation	±0.3℃(@37℃)
Temp. Uniformity	±0.5℃(@37℃)
Temp. Precision	0.1℃
Timing Range	0~999h or continuous
Display	7-inch touch screen
CO2 Control	IR infrared sensor with calibration certificate
CO2 Range	0~20vol%
CO2 Uniformity	0.2vol%
CO2 Control Resolution	0.1vol%
Ambient Temperature and Humidity	Ambient Temperature: 5~30℃(Recommendation: 25±2℃)
Ambient Temperature and Humidity	Ambient Humidity: ≤80%
Filter	CO2 gas filter
Power Supply	AC220V, 50/60Hz(Standard); 110V, 50/60Hz(Optional)(External transformer)
Power Supply	Wiring Method: plug
Consumption	800W	820W	840W	1800W
Shelves	2pcs, adjustable		3pcs, adjustable
Standard Accessories	Shelves, USB interface, CO2 relief valve, CO2 gas filter
Optional Accessory	Water pump
Internal Size(WDH)	407415615mm	457470753mm	505470857mm	5675001068mm
External Size(WDH)	632740894mm	6827961030mm	7307961134mm	7928301344mm
Package Size(WDH)	7578651055mm	8079211190mm	8559211294mm	9179551504mm
Net Weight	95kg	110kg	130kg	185kg
Gross Weight	120kg	135kg	155kg	210kg
