Stacked Large Capacity Shaking Incubator(BJPX-N/RN)

Discover BABIO stacked shaking incubators for bacterial culture, fermentation and cell research. 180L capacity, precise PID control and factory-direct supply.

Send Inquiry

Product Description

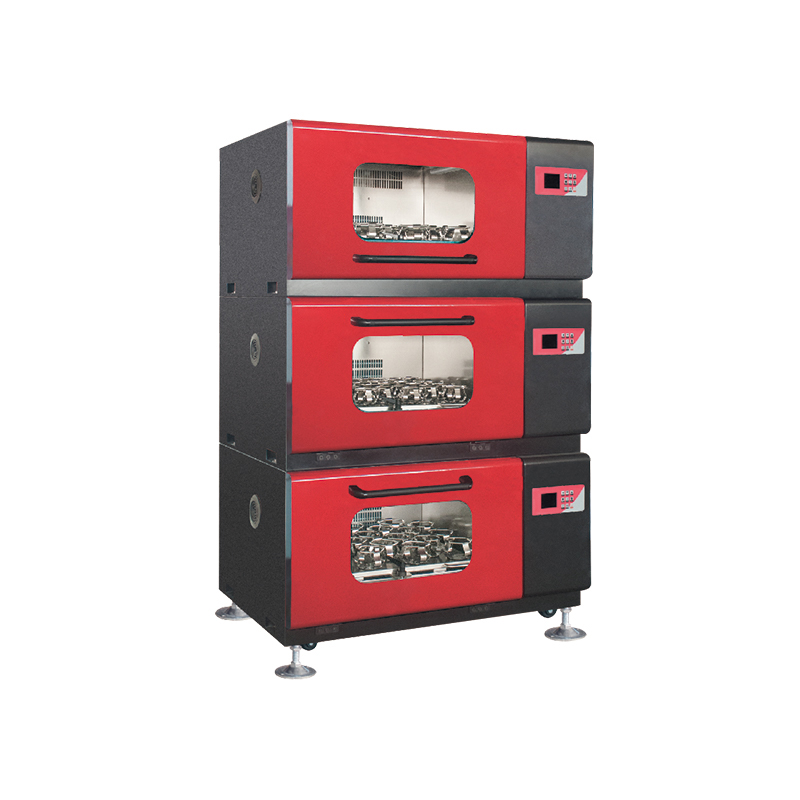

Stacked Large Capacity Shaking Incubator BJPX-N/RN

The Stacked Shaking Incubator BJPX-2012N and BJPX-2012RN delivers efficient temperature-controlled shaking for bacterial culture, fermentation, cell culture, and molecular biology research. Each 180L unit features a high-quality servo motor, precise PID temperature control, and accurate rotary shaking up to 350 rpm. The large-capacity shaking incubator supports adjustable speed, temperature, and timer settings for laboratory research, enzyme studies, and biochemical reactions. The BJPX-2012RN adds refrigeration and automatic defrosting for low-temperature incubation. As a well-known Chinese laboratory equipment manufacturer, BABIO offers factory-direct supply. Explore product details at https://www.babiocorp.com.

Features:

1. High quality servo motor.

2. Multi-steps rotate speed, temperature and time control systems.

3. Slow accelerate and decelerate design.

4. Advantaged air duct design.

5. Automatic defrosting function(only BJPX-2012RN).

6. High-precision speed control.

7. High-precision temperature control.

8. Unique drive system.

9. Open door protection.

10. LCD display with bright illumination.

11. Memorized and protected operating parameters.

12. Continuously running or timing.

13. Unique slow-start design.

14. Standard of illumination and UV light.

Technical Parameters:

Model	BJPX-2012N	BJPX-2012RN
Capacity	180L(Per unit)
Temp. Sensor	PT100
Temp. Range	RT+5~65℃	4~65℃(@ 20℃)
Temp. Fluctuation	≤0.1℃(@ 37℃）
Temp. Uniformity	±0.6℃(@ 37℃)
Temp. Precision	±0.1℃
Timing Range	0~9999h/min or continuous
Controller	PID
Display	LCD
Circulation Mode	Forced convection
Shaking Mode	Rotary shaking
Drive Mode	Multidimensional drive
Vibration Range	Φ26mm(Can customize φ35(20~250rpm); φ50(20~200rpm))
Rotating Speed	0; 20~350rpm(Top layer 20~300rpm, static culture, reverse rotation or alternate operation)
Rotating Accuracy	±1rpm
Shaking Plate Size	610*460mm
Shaking Plate Quantity	1pc
Max. Capacity	250ml32 or 500ml21 or 1000ml13 or 2000ml7(flask clamp) 250ml32 or 500ml20 or 1000ml12 or 2000ml8(haftplatte)
Standard Capacity	Flask clamp: 500ml*20
Internal Material	Stainless steel
External Material	Sprayed steel plate
Refrigerant	/	R134a
Safety Function	Audio and visual alarm for over-temperature Alarm for over-speeds Independent over-temperature protector Shutdown protection for door opening Leakage or over-current protection Ultraviolet disinfection function Calibration of monitoring temperature and ambient temperature Overload protection of refrigeration unit and delayed start of incoming call(only BJPX-2012RN)
Consumption	1000W(Per unit)	1200W(Per unit)
Power Supply	AC220V, 50Hz(Standard); 220V, 60Hz(Optional); 110V, 50/60Hz(Optional, external transformer)
Internal Size(WDH)	715550450mm(Per unit)
External Size(WDH)	1120790620mm(Per unit)
Package Size(WDH)	1275950810mm(Per unit)
Net Weight	175kg(Per unit)	190kg(Per unit)
Gross Weight	205kg(Per unit)	220kg(Per unit)
