18L and 24L portable autoclave for steam sterilization of dental instruments, glassware and laboratory supplies, with safety protection and flexible heating options.

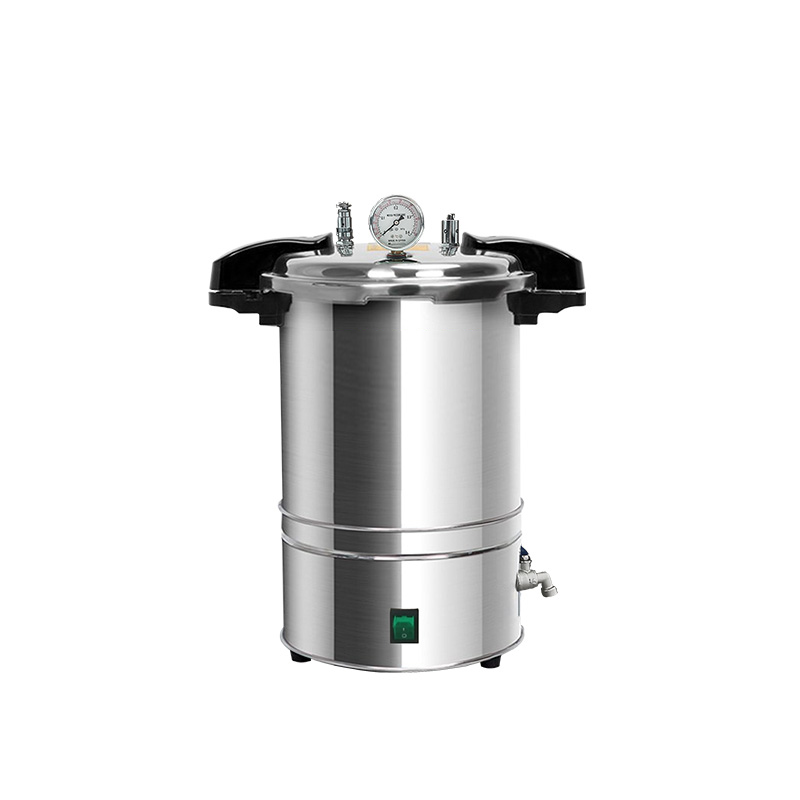

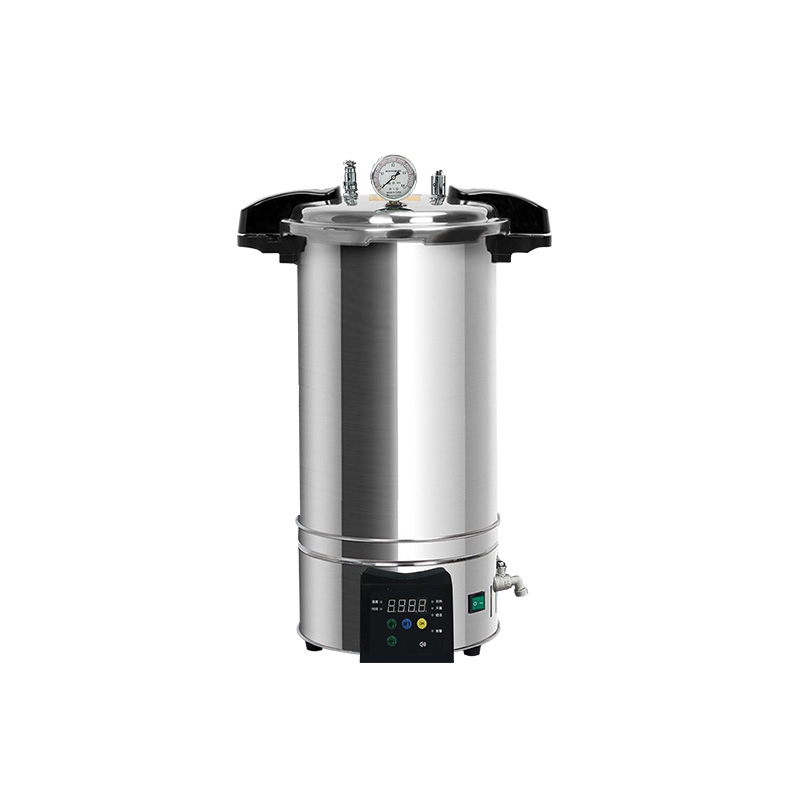

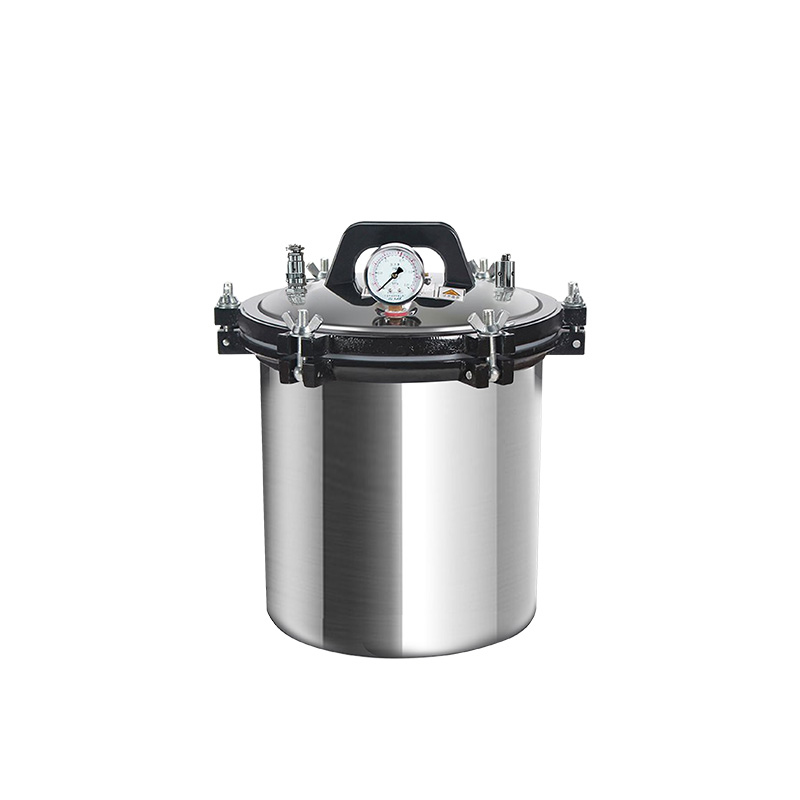

Portable Autoclave BKM-P18/BKM-P24 provides a practical steam sterilization solution for surgical and dental instruments, glassware, culture media, biological dressings, food, and laboratory supplies. Available in 18L and 24L capacities, this compact autoclave supports flexible sterilization in clinics, laboratories, research facilities, and other settings requiring convenient equipment.
The stainless-steel immersion heating tube delivers efficient heating, while the self-expanding sealing ring helps prevent steam leakage. Depending on the model, users can choose electric heating, dual-use heating, anti-dry protection, or timing control. Automatic temperature adjustment, low-water protection, over-temperature protection, over-pressure protection, and safety valves enhance daily operating safety.
With temperature settings from 105°C to 127°C on selected models and sterilization timing up to 99 minutes, this portable steam sterilizer offers flexible laboratory sterilization. BABIO (Baibo Biotechnology) is a well-known Chinese manufacturer of laboratory and sterilization equipment, supplying solutions to global customers. Visit https://www.babiocorp.com for product details and cooperation opportunities.
Features:
1. Self-expanding sealing ring has good sealing performance and can effectively prevent steam leakage.
2. Over-temperature and over-pressure automatic protection.
3. Immersion electric heating tube, high thermal efficiency, durable stainless steel tube.
4. Equipped with a water level gauge, if the water level is too low, it will automatically stop heating(anti-dry type).
5. Electric heating or liquefied petroleum gas heating(dual-use type).
6. With self-adjustment function, temperature and time can be adjusted by itself, automatically stop heating and alarm function after sterilization(timing control type).
7. Two safety valves keep double safety(timing control type).
Technical Parameters:
|
Model |
BKM-P18I |
BKM-P18II |
BKM-P18III |
BKM-24I |
BKM-P24II |
BKM-P24III |
|
Type |
Dual-use Type |
Anti-dry Type |
Timing Control Type |
Dual-use Type |
Anti-dry Type |
Timing Control Type |
|
Capacity |
18L |
24L |
||||
|
Max Working Pressure |
0.165MPa |
|||||
|
Max Working Temp. |
129℃ |
|||||
|
Rated Working Pressure |
0.14MPa |
|||||
|
Rated Working Temp. |
126℃ |
|||||
|
Temp. Setting |
Fixed 126℃ |
105~127℃ |
Fixed 126℃ |
105~127℃ |
||
|
Heating Method |
Coal or electricity |
Electricity |
Coal or electricity |
Electricity |
||
|
Sterilizing Time |
Manual timing |
0~99min |
Manual timing |
0~99min |
||
|
Chamber Size |
Ф300*320mm |
Ф280*350mm |
Ф300*450mm |
Ф280*460mm |
||
|
Altitude |
<2600m |
|||||
|
Disinfection Tank |
Φ280*240mm |
Φ265*265mm |
Φ280*350mm |
Φ265*345mm |
||
|
Automatic Control |
No |
Yes |
No |
Yes |
||
|
Low Water Level Power Off Mode |
Anti-dry burning heating pipe |
Water level switch |
Anti-dry burning heating pipe |
Water level switch |
||
|
Consumption |
2KW, 1.5KW can be customized | |||||
|
Power Supply |
AC220V, 50/60Hz(Standard); AC110V, 50/60Hz(Optional) |
|||||
|
External Size(W*D*H) |
385*385*450mm |
450*340*600mm |
385*385*560mm |
448*340*680mm |
||
|
Net Weight |
15.5kg |
13.5kg |
16.5kg |
14.5kg |
||
|
Package Size(W*D*H) |
400*400*430mm |
400*400*670mm |
400*400*530mm |
400*400*770mm |
||
|
Gross Weight |
16.5kg |
14.5kg |
17.5kg |
15.5kg |
||
