Laminar Flow Cabinet BKCB-V600

Laminar Flow Cabinet with H14 HEPA filtration and ISO Class 5 clean airflow for laboratories, biotechnology, tissue culture, and product protection.

Send Inquiry

Product Description

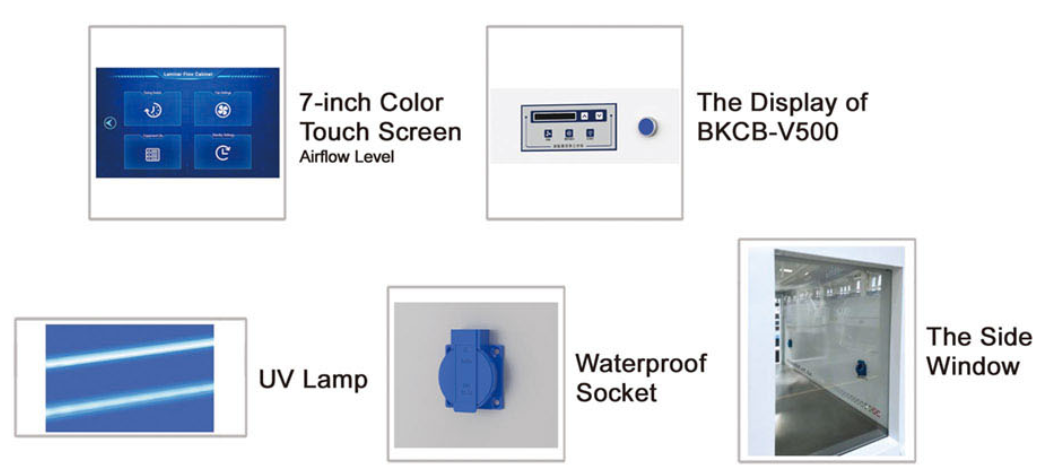

Laminar Flow Cabinet BKCB-V500 and BKCB-V600 provide a clean, low-particle workspace for laboratories, biotechnology, medical research, tissue culture, and other applications requiring product protection. This vertical laminar flow cabinet uses H14 HEPA filtration with ≥99.995% efficiency at 0.3 μm and achieves ISO Class 5 cleanliness. A 7-inch touchscreen monitors airflow, filter status, temperature, humidity, and UV lamp time, while automatic timing, alarms, and safety interlocks simplify daily operation. The 304 stainless steel work surface and tempered glass provide durability and visibility. Babio Biotechnology (Baibo) is a China-based manufacturer offering factory-direct supply, OEM/ODM customization, and laboratory clean bench solutions. Visit Babio Biotechnology.

Technical Parameters:

Model	BKCB-V500	BKCB-V600
Flow Mode	Vertical flow
Number of Users	Single
Rated Power	120VA	650VA(including operating area socket load 500VA)
Power Supply	220V±10%, 50Hz(Standard); 110±10%V, 60Hz(Optional)
Airflow Velocity	0.2m/s~0.45m/s
Noise	≤65dB(A)
Lighting	≥300Ix
Vibration	≤5μm(rms)
Safety	Colonies Number≤0.5CFU/30min
Clean Grade	ISO level 5(100 levels)
Filtration Efficiency	HEPA(H14) high efficiency filter, filtration efficiency for 0.3μm particle≥99.995%
Front Window Safety Height	200mm
Max Opening	260mm	240mm
Standard Accessory	LED lamp1, UV lamp2	LED lamp2, UV lamp2, Waterproof socket*2
Optional Accessory	Armrest*2,water tap, gas tap, electric height adjustable base stand
Net Weight	45kg	50kg
Gross Weight	57kg	62kg
External Size(WDH)	550mm460mm700mm	600460710mm
Internal Size(WDH)	480mm340mm370mm	510355375mm
Package Size(WDH)	740600890mm
