Ducted PP Fume Hood FH(P)

Ducted PP Fume Hood for chemical laboratories, universities and industry. Acid-resistant PP construction supports laboratory safety. Made by BABIO in China.

Send Inquiry

Product Description

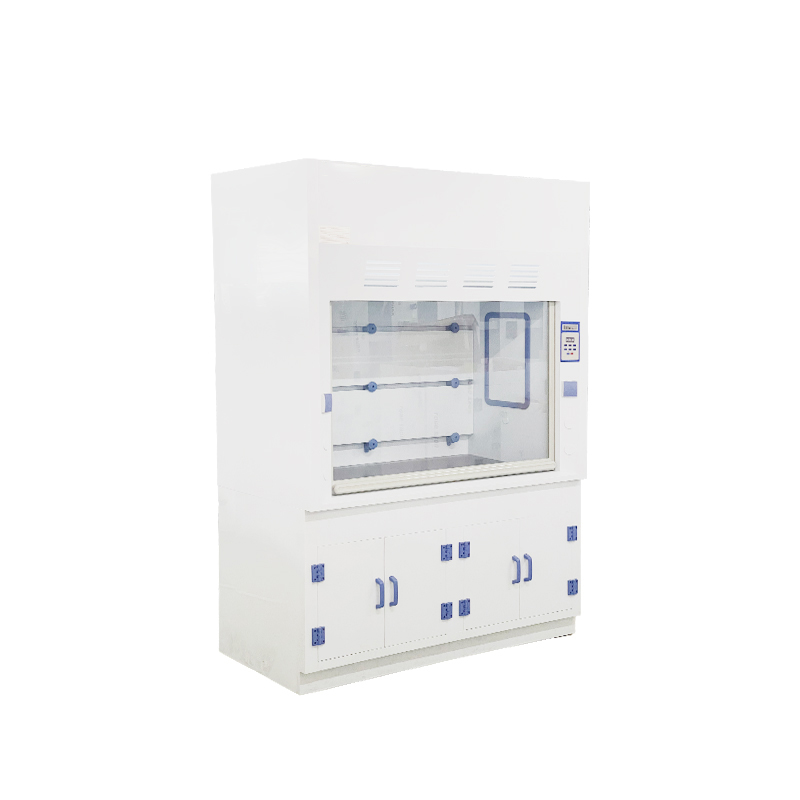

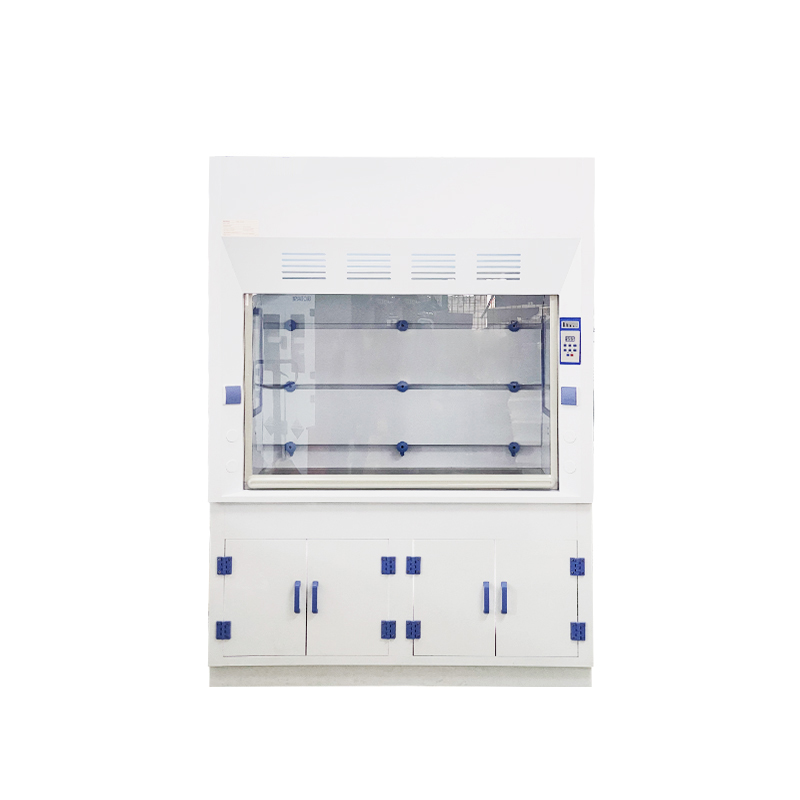

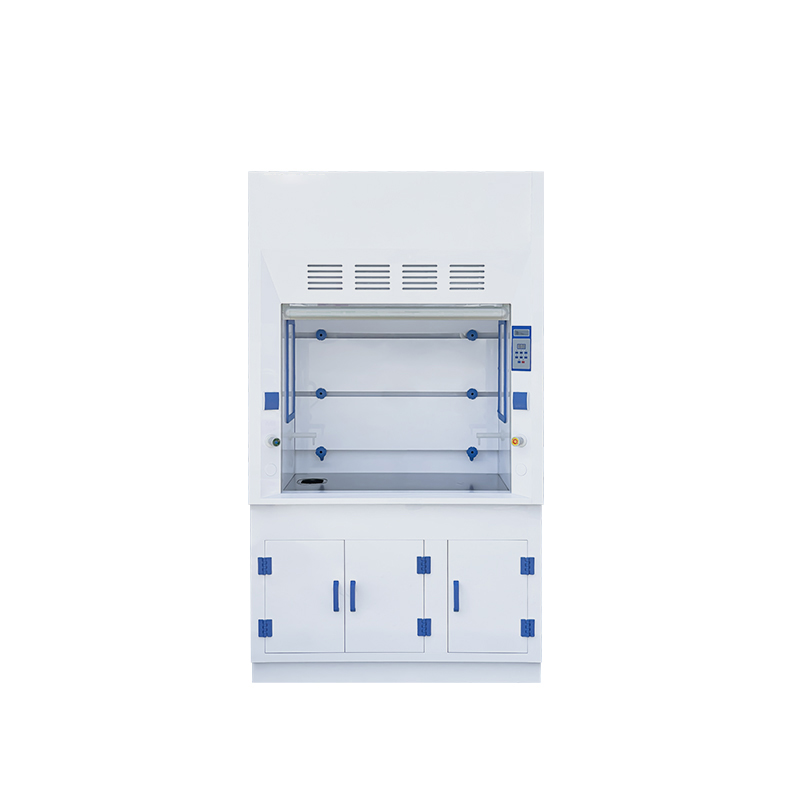

Ducted PP Fume Hood FH(P) is a corrosion-resistant laboratory fume hood designed for chemical experiments, universities, research laboratories, electronics, and industrial applications. Its durable PP construction provides strong resistance to acid, alkali, and corrosive chemicals, while the ducted ventilation design helps remove hazardous fumes and volatile substances from the workspace. A 5mm toughened glass sash provides clear visibility and convenient operation. With LED display, microprocessor control, and power-failure memory, this chemical fume hood supports efficient laboratory safety. BABIO (Baibo Biotechnology) is a professional Chinese manufacturer supplying laboratory equipment and customized solutions. Visit https://www.babiocorp.com for details.

Features:

1. It is safer to use anti-corrosive water tap.

2. Microprocessor control system, LED display.

3. With memory function in case of power-failure.

4. Made of porcelain white PP, resistant to acid, alkali and anti-corrosion.

5. Front window which is made of 5mm thick transparent toughened glass maximize light and visibility inside the fume hood, providing a bright and open working environment.

Technical Parameters:

Model		FH1000(P)	FH1200(P)	FH1500(P)	FH1800(P)
External Size(WDH)		10478002450mm	12478002450mm	15478002450mm	18478002450mm
Internal Size(WDH)		787560700mm	987560700mm	1287560700mm	1587560700mm
Work Surface Height		820mm
Max Opening		740mm
Air Velocity		0.3~0.8m/s
Noise		≤68dB
Exhaust Duct		5meters, Φ250mm
LED Lamp		9W*2	12W*2	15W*2	20W*2
Blower		Built-in PP centrifugal blower(2 blowers for FH1800(P) only), Speed adjustable
Front Window		Resistant to acid and alkali, manual, 5mm toughened glass, height adjustable
Power Supply		AC220V±10%, 50/60Hz; 110V±10%, 60Hz
Consumption		400W	400W	500W	700W
Material	Main Body	Made of porcelain white PP, thickness 8mm, resistant to strong acid, alkali and anti-corrosion.
	Work Table	Chemical resistant phenolic resin
Standard Accessory		LED light Work table: chemical resistant phenolic resin 5meters PVC duct(2pcs of 4.3 meters PVC dust for FH1800(P) only), Diameter: 250mm Pipe strap2(4pcs for FH1800(P) only) RVV power cord(31.0mm²3000mm) Base cabinet Waterproof socket2 Tail insert Water tap(PP) Gas tap(PP) Water sink PP centrifugal blower*1(2 for FH1800(P) only)
Optional Accessory		PP work table, epoxy resin board or ceramic board Active carbon filter Outer PP centrifugal blower *1 (2 for FH1800(P) only); Splicable base cabinet(only not for FH1800(P))
Gross Weight	Main Body	137kg	155kg	180kg	206kg
	Base Cabinet	89kg or 80kg(Splicable)	99kg or 90kg(Splicable)	114kg or 102kg(Splicable)	140kg
Package Size(WDH)	Main Body	11889381612mm	13889381612mm	16889381612mm	19889381612mm
	Base Cabinet	11888881000mm or 12001000450mm(Splicable)	13888881000mm or 14001000450mm(Splicable)	16888881000mm or 17001000450mm(Splicable)	19888881000MM
